Product Overview

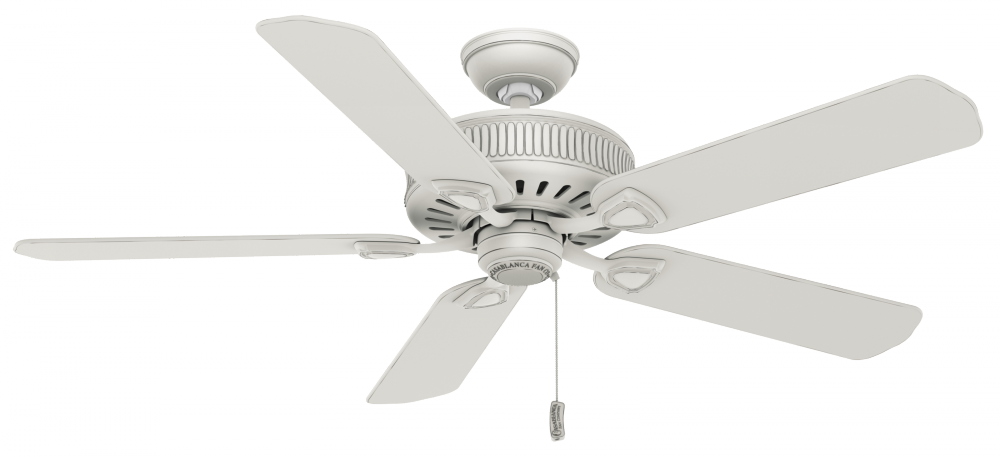

It's all in the details. Meticulous columns grace the motor housing to create a sophisticated, timeless look making the Ainsworth the ideal centerpiece for your french country decor style. Drawing inspiration from ornamental design in classic architectural sheet metal, the Ainsworth boasts a traditional style with a simple, yet tasteful touch for a truly distinguished look.

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

White

Style:

Traditional

Voltage:

100-120

Number of Blades:

5 Blades

Refinement Options

Category:

Fan

Finish:

Cottage White

Style:

Traditional

Family:

Ainsworth

Voltage:

120 V/60 Hz

Air Flow CFM:

6017

Air Flow Efficiency:

75

Blade Pitch:

13

Blade Span:

54

Blades Included:

Yes

Down Rod Included:

3

Light Kit Included:

No

Motor Size:

AC 172 x 20

Motor Type:

WhisperWind®

Pull Chain Included:

Yes

Ship Carton Height:

9.5

Ship Carton Length:

13.9

Ship Carton Width:

21.3

Ship Weight:

24.2

Warranty:

Limited Lifetime Motor

Weight:

20.56

Airflow:

3431

Batteries Included:

No

Blade Material:

Plywood

Blade Side 1 Finish:

Cottage White

Blade Side 2 Finish:

Cottage White

Bulb Included:

No

Canopy Type Description:

Standard Platform

Dim A - Angled - Ceiling to Bottom of Fan:

46.1

Dim A - Standard - Ceiling to Bottom of Fan:

13.11

Dim A Flush Ceiling To Bottom of Fan:

12.11

Dim B - Angled - Ceiling to Bottom of Fan Blade:

44.73

Dim B - Flush - Ceiling to Bottom of Fan Blade:

10.73

Dim B - Standard - Ceiling to Bottom of Fan Blade:

11.73

Dim C - Standard - Ceiling to Bottom of Canopy:

2.75

Dim D - Standard - Width of Fan Body:

12.41

Dim E - Standard - Canopy Width:

6.49

Dim G - Standard - Height of Motor Housing:

5.3

Energy Star:

No

Energy Use:

46

Estimated Yearly Energy Cost:

13

LED Light Kit:

No

Number of Blades:

5

Product Class Code:

60A

Reversable Motor:

Yes

Reversible Blades:

Yes

Safety Rating:

ETL Approved

Shipping Cubic Feet:

1.63

Speeds:

4

Stainless Steel Hardware:

No

Sure Speed:

No

5 Cottage White blades included

COMPATIBLE ACCESSORIES: Works with Hunter and Casablanca accessories, not including Hunter Original® accessories

Includes 3'' downrod to ensure proper distance from the ceiling and optimize air movement

Includes pull chains for quick and easy on/off and speed adjustments

INDOOR FANS: Great for bedrooms, offices and great rooms. Make sure you get the right size for the best cooling efficiency.

INDUSTRY-LEADING WARRANTY: Backed by Casablanca’s Limited Lifetime Motor Warranty, ensuring long-lasting performance and reliability.

Installer's Choice® three-position mounting system allows for standard, low, or angled mounting

LARGE ROOM FAN: Ideal size for spaces like living rooms and bedrooms.

No light kit or bulbs included

Pull chains included

Rated for indoor use only

Reversible, 4-speed WhisperWind® motor delivers ultra-powerful air movement with whisper-quiet performance so you get the cooling power you want without the noise you don’t®

STANDARD PROFILE MOUNTING: 3 inch downrod included.

WHISPER-QUIET MOTOR: WhisperWind® reversible motor for optimal performance in summer and winter.

WhisperWind® whisper-quiet motor.
